What is a tunnel arm for excavator?
A tunnel arm for an excavator, also known as a shortened arm or tunnel-specific boom, is a specialized attachment designed specifically for excavation and crushing operations in confined spaces such as tunnels, basements, and underground mining areas.
Because standard excavator arms are often too long for these restricted environments, the tunnel arm solves this issue by being intentionally shortened. This modification significantly reduces the machine's operating radius, allowing it to rotate flexibly and maneuver easily without colliding with tunnel ceilings, walls, or structural beams.
Key Features and Advantages:

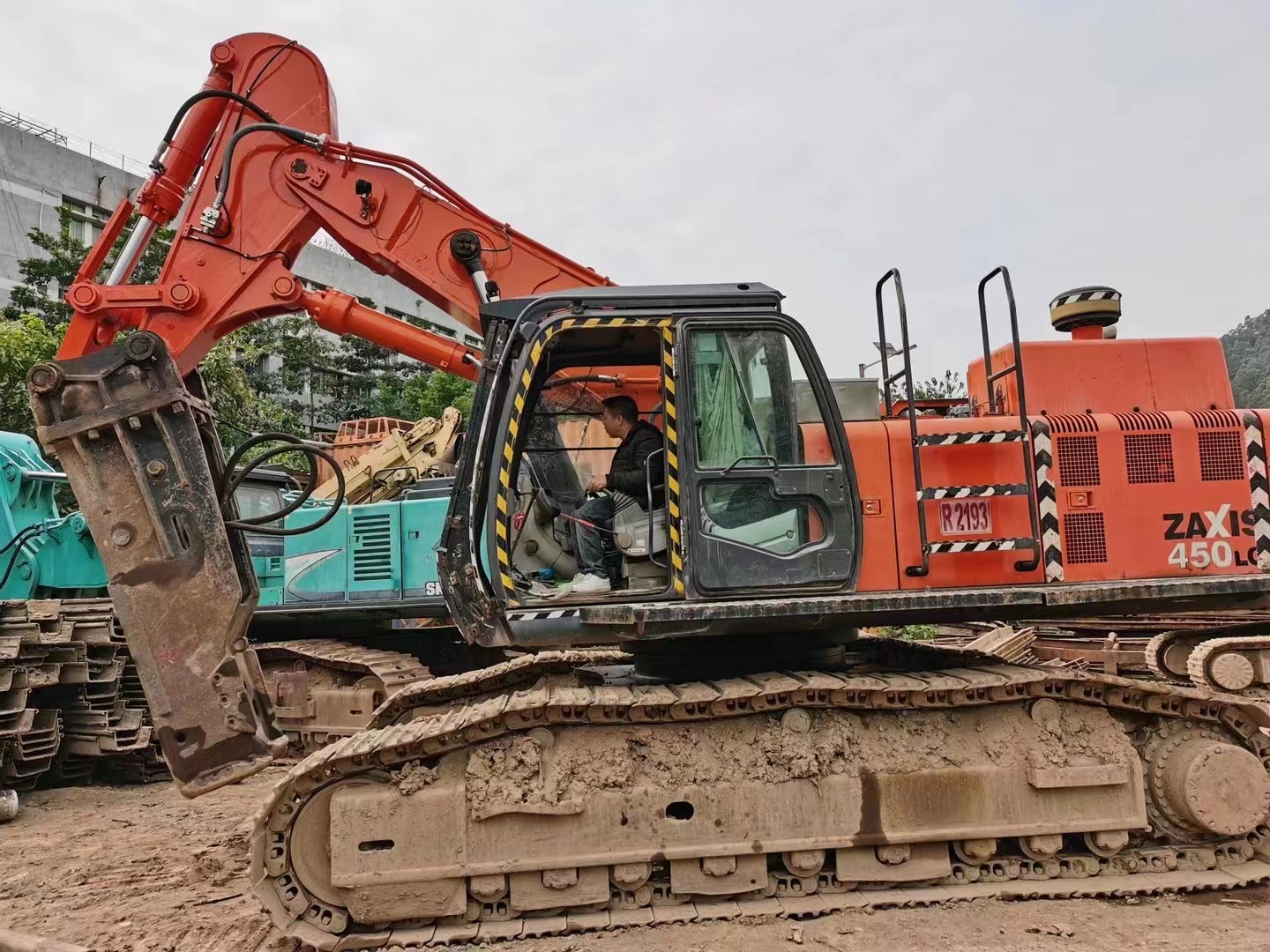

Enhanced Power & Capacity: Despite its shorter length, the hydraulic cylinders (such as the bucket cylinder and intermediate cylinder) are typically enlarged and thickened to boost hydraulic power. This allows the excavator to handle larger buckets and heavier, more powerful breaker hammers, thereby increasing the striking force during rock-breaking tasks.
Safety Protection: Tunnel environments pose risks of falling debris. To prevent damage from stray rocks, protective covers are added to vulnerable components like the cylinders. Additionally, some advanced designs incorporate a shut-off valve at the front for better control.
Customization & Advanced Designs: Manufacturers can customize the dimensions of the arm based on specific tunnel height and width requirements. Furthermore, specialized patented versions feature a deflection mechanism that allows the arm to pivot left and right, enabling precise profiling and sweeping along the curved edges of the tunnel. Others utilize high-strength manganese steel and dual-directional tooth structures to withstand harsh conditions and improve continuous construction efficiency.

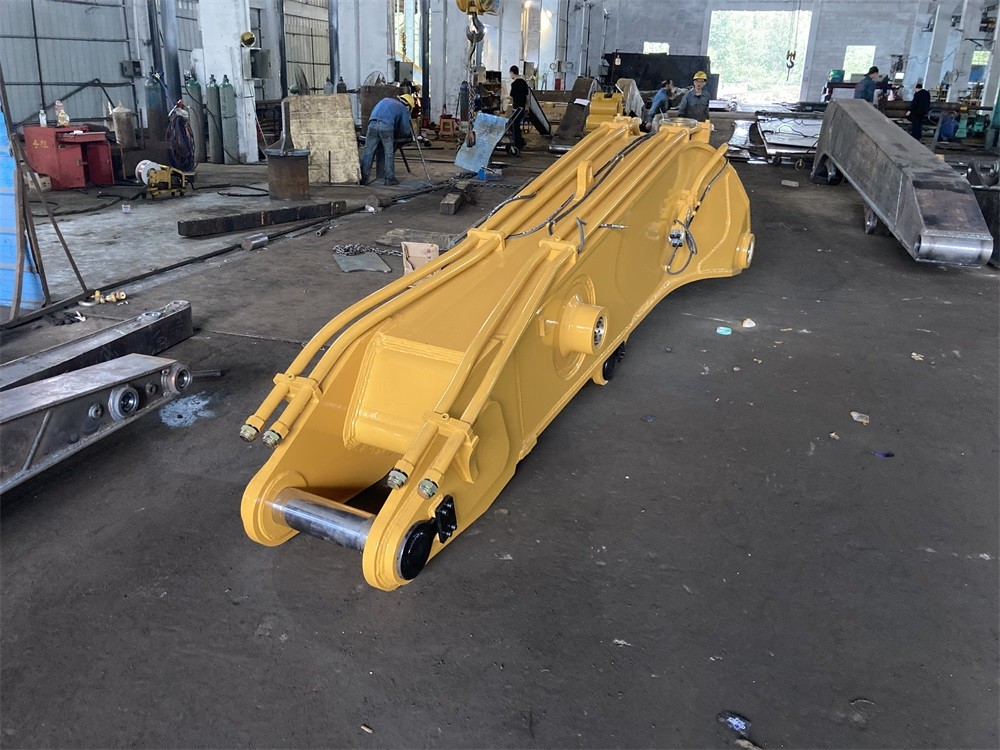

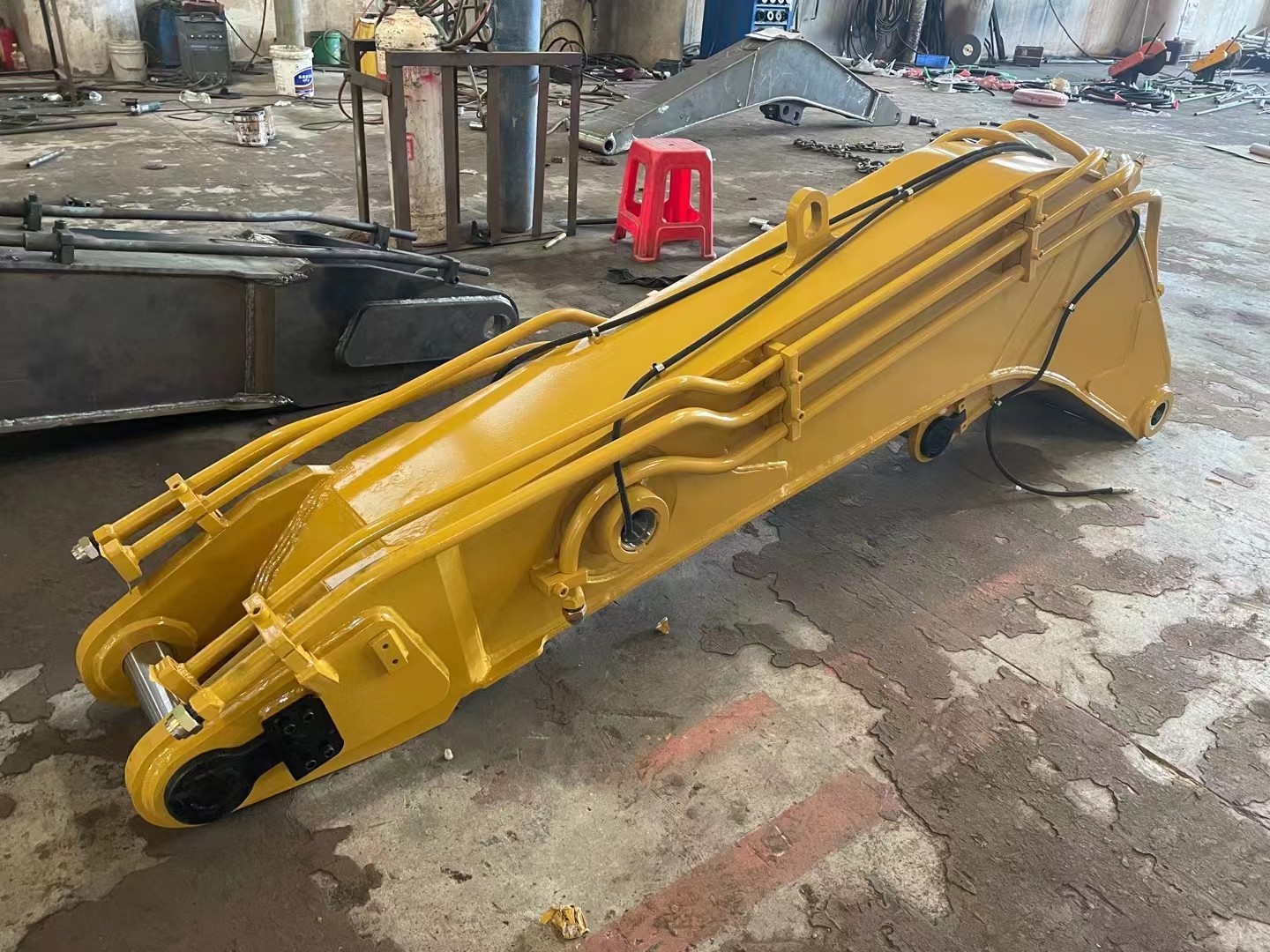

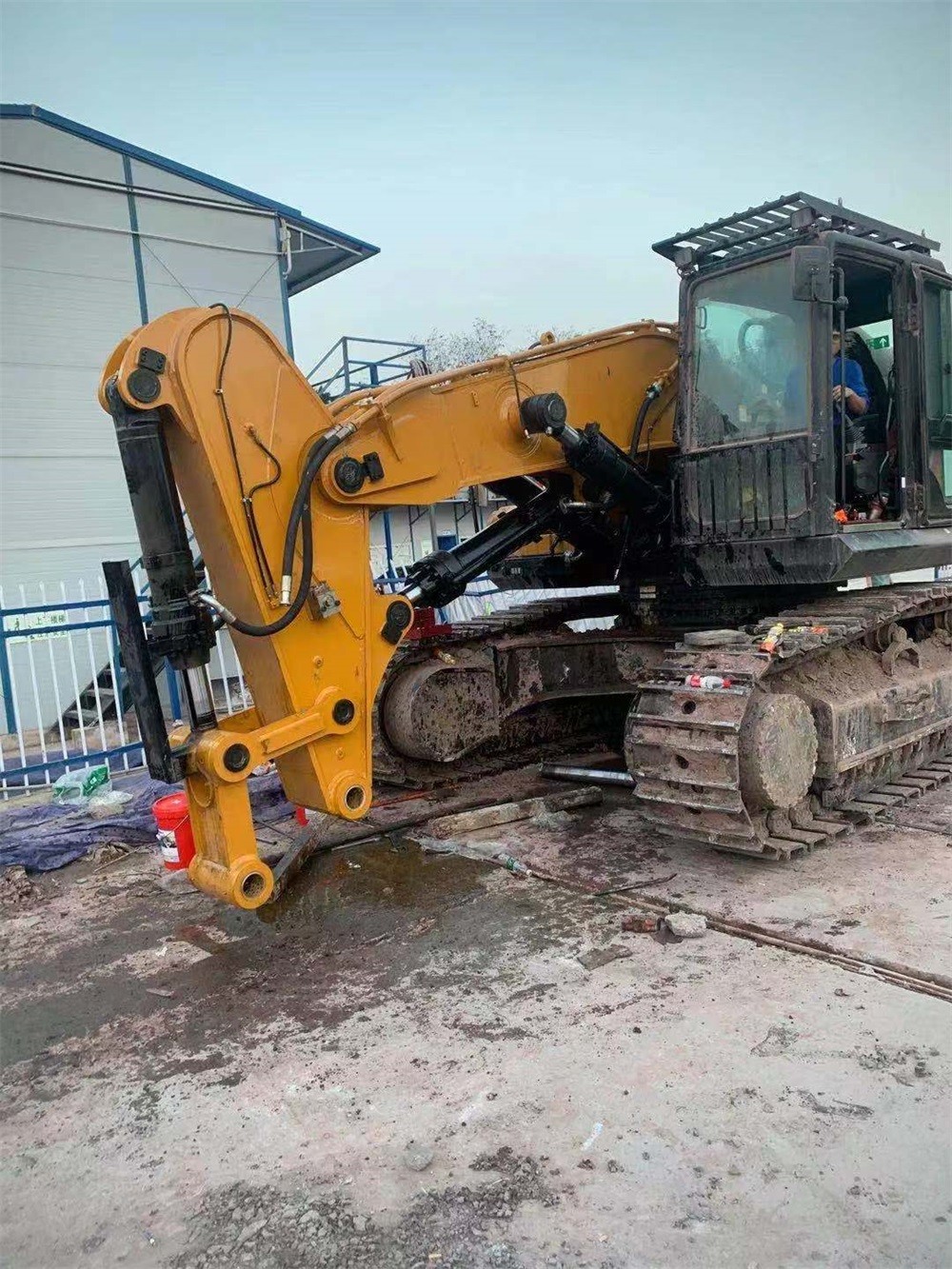

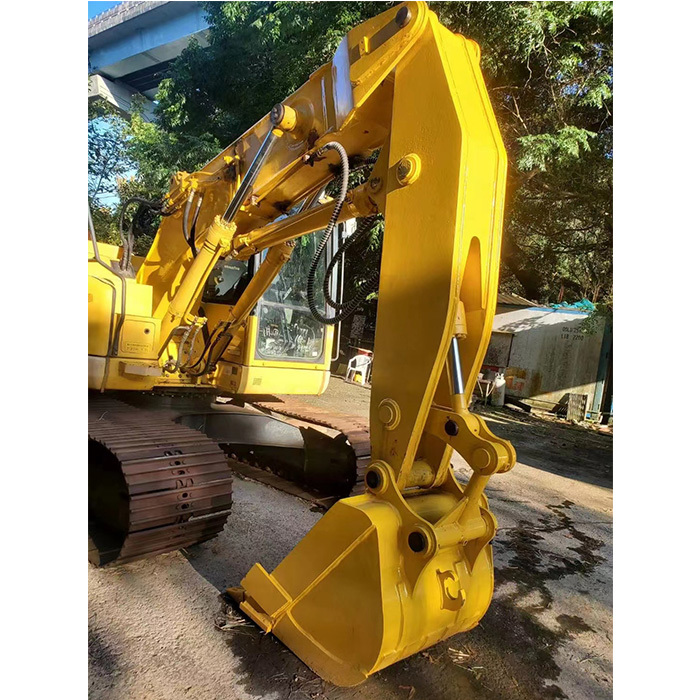

Two Types Excavator Tunnel Arm / Excavator Shorten Arm Shorten Boom:
Zhonghe Machinery's Excavator Tunnel Arm / Excavator Shorten Arm's Advantages:
FAQ of One Set of Excavator Tunnel Arm:
1. Why choose a tunnel arm instead of using a standard excavator or a smaller machine?
Standard excavator arms are often too long for confined spaces like tunnels (culverts), or underground galleries, making 360° rotation impossible and severely limiting the operating range. Conversely, switching to a smaller excavator solves the space issue but results in low power and poor efficiency. A tunnel arm is specifically designed as a shortened attachment that allows a large excavator to retain its original high horsepower while gaining the flexibility to maneuver in tight spaces, thereby improving overall construction efficiency by over 40%.
2. What are the most critical safety and maintenance precautions during operation?
Operating a tunnel arm requires strict adherence to safety protocols to avoid severe accidents:
Avoid Overloading & Sudden Movements: Exceeding the rated load can cause hydraulic overheating or structural deformation. Operations should be smooth; rapid or aggressive movements can cause severe shock loads on the mechanical parts.
Monitor Hydraulic Health: Regularly check hydraulic oil quality and levels. Contamination or low oil can lead to sudden arm drift, sluggish lifting, or loss of control. Early detection of issues like slow arm movement or drifting can save up to 70% in repair costs.
Clear Blind Spots & Ensure Stability: Always verify that no personnel are standing in the arm's swing radius. Additionally, ensure the ground is level before operating, as uneven terrain combined with arm extension can risk equipment tipping.
